To make IEC61850 configuration for AQ2xx
series relay AQtivate setting tool is needed. It is possible to setup the
IEC61850 configuration without a physical unit if you have an aqs configuration
package. Other useful tools are e.g. an IEC61850 client like Omicron’s IEDScout
and if really bit-by-bit information is needed an Ethernet traffic sniffer like
Wireshark can be useful.
There are two ways to open an aqs package
before you start setting up IEC 61850:
· Open a previously read .aqs
file using AQtivate.
· Connect to a relay and use
command ‘Get Aqs-file’ under Commands menu.

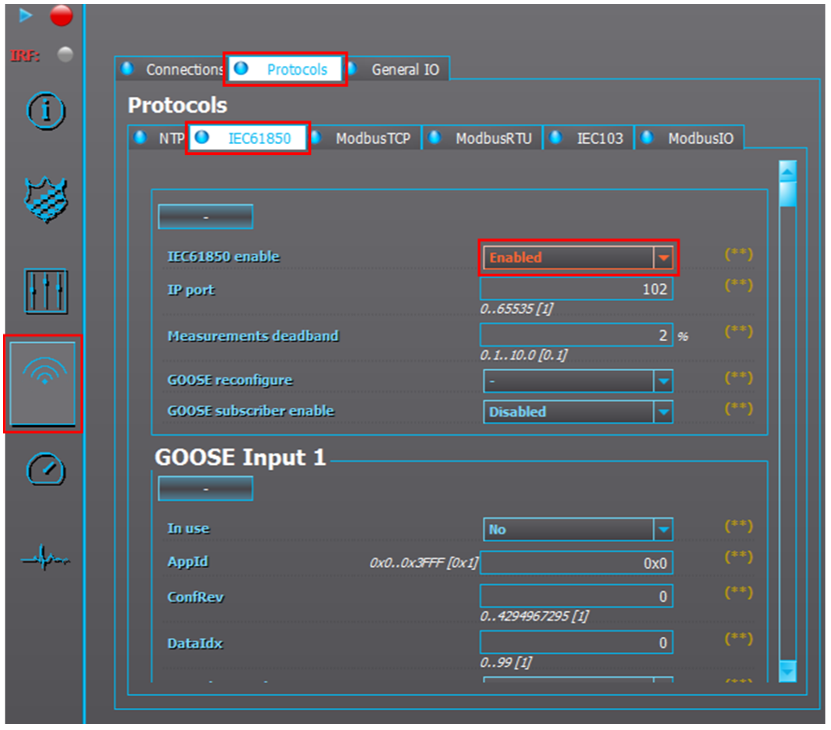

To activate IEC61850 in the device go to
Communication à Protocols à IEC61850 and set IEC61850
enable to Enabled. See picture below. Write this setting to the relay
with Commands à Write
settings command. Now the IEC61850 is activated and
it is possible to connect to the device using an IEC61850 client. (As long as
IP address information is setup). Upload this setting to the relay (CommandsàUpdate settings or enable Live-edit).
The IEC61850 editor is the main tool for
configuring IEC61850 for the AQ2xx series. The tool can be launched from Tools
menu in AQtivate setting tool.
Open cid file
Open a cid
file from the hard drive.
Save cid file
If cid file
was saved to a folder on the computer this button updates that file.
Save to aqs.
Saves the cid
file into the aqs-configuration file currently open.
Save cid file as
Save CID file
in chosen directory with custom name.
Export DataSet info
info into a .txt file in table form which can be opened with tools like
Used to edit
datasets. Opens new dialog.
Send to relay
open CID configuration to relay. Connection to relay required.
Import GOOSE settings
In case GOOSE
publisher and subscriber settings have been made with third party software
this tool can be used for importing those settings to relay.
Get default cid from relay
retrieve the factory default CID file from the relay. Command requires a
connection to a relay.

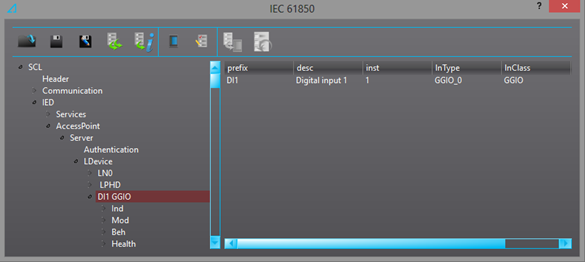

IEC61850 model for all AQ2xx series units is always available (opened aqs-file
not required) and can be viewed using the editor. See picture below. All
Logical Nodes with a short description can be seen in the left hand side
The parameters visible in this dialog are
actually part of the cid-file. This means that after editing any of these parameters
the contents of the cid-file changes and should be written to the device.

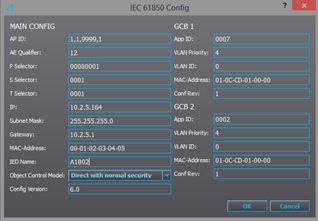

In the main configurations
dialog on the left side are the MAIN parameters. First 5 parameters are upper
layer addressing parameters. These are very seldom used. Check with client side
implementation if these need to be changed.
IP setting with mask and gateway needs to
be set to suite the system. These settings are crucial. The IP settings in the
cid file must match the communication settings of the device. The MAC address
is automatically set by the device when the configuration is written to the
The IED Name is usually used to identify
the device in the IEC61850 world. The name should be unique in the system.
Object control model can be changed
for the controllable Logical nodes, OBJ1CSWI to OBJ5CSWI. Possible modes are;
Direct with normal security, SBO with normal security, Direct with enhanced
security and SBO with enhanced security.
On the right side in the configurations
dialog are the 2 GOOSE control block parameters. These are used to configure
App ID stands for Application
Identification. This hexadecimal parameter
defines the ID of published GOOSE data from this unit. There are 2 GOOSE
control blocks available in the device. The App ID must be unique in the
network. The App ID is used in the subscriber to identify the incoming GOOSE
VLAN Priority can together with VLAN ID
parameter be used to build sub-networks in the system utilizing intelligent
MAC-Address defines the multicast address
to which the GOOSE publisher is sending its frames.
Conf Rev. stands for configuration
revision. It can be considered to be the version number of the GOOSE dataset.
Datasets and control blocks
All data traffic commonly used in IEC61850
is related to datasets and report control blocks. In IEC61850, report control
blocks in the server are reserved by the client when the client wants to get
reports from the server. After the client has enabled a report control block,
the server is responsible of data reporting to the client. Dataset
configuration can consist of URCB- or BRCB report control blocks.
- BRCB: Buffered report control block.
Server collects, buffers, reports even if there is no subscription from the
- URCB: Un-Buffered report control
block. Reports only when there is a subscription from the client.

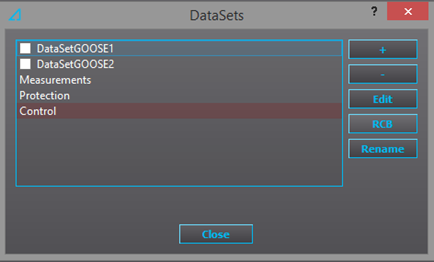

When opening the Dataset editor you will
most likely see some datasets already in the configuration. By default there
are three unbuffered, three buffered datasets and two GOOSE datasets. Datasets
can be added or removed with + or - buttons. The two GOOSE datasets are hard
coded in AQ2xx series relays. It is not possible to add or remove GOOSE

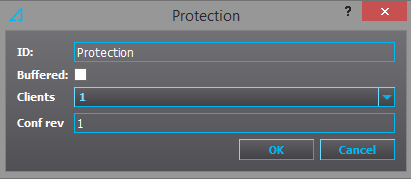

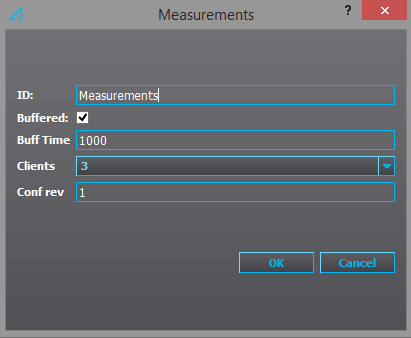

It is possible to have a total of six
datasets. When a new dataset has been added you need to choose if the dataset
is buffered (BRCB) or unbuffered (URCB). The more RCB:s (clients) have been
selected for the dataset the more clients can subscribe to the dataset. Maximum
amount of subscribers per dataset is five.
Contents of the dataset can be viewed
and edited by selecting a dataset and clicking Edit-button.

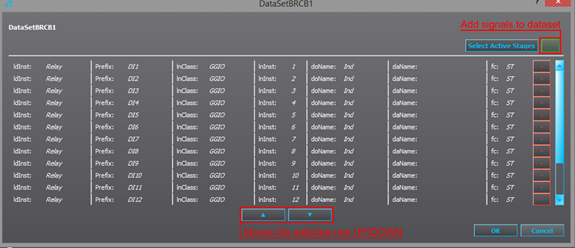

In the datasets dialog each line
represents a data entry in the dataset. Data items in datasets can be included
on Data Object level or Data Attribute level. In this example all data is
included as Data Objects which is also most common, the doName is Ind. A data
object includes data attributes and in this example the Ind object contains
attributes stVal, q and t. (value, quality and timestamp).

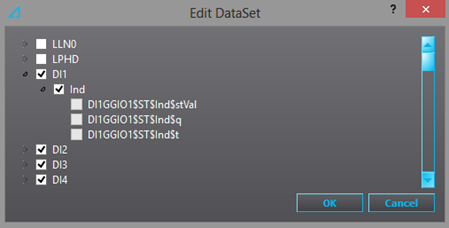

Pressing the ‘-‘ button at the end of the
row deletes that entry from the dataset. Pressing the ‘+-‘ button opens a
dialog where entries can be added and deleted. See picture below where DI1, 2, 3
and 4 have been selected in data object level which means that includes all
data inside is included. Pressing the Select Active Stages button will include
the start and trip information of all stages which are enabled in the relay
configuration to this dataset.
Saving dataset to aqs package
To save the changes to the aqs file when
IEC61850 configurations are completed click on the .CID/.ICD file and then save
the aqs file (File à Save
or Ctrl+S). Now when the aqs package is uploaded to the relay (Commands à Write all) it will also update the IEC61850 configurations as well.
Sending the CID to the relay
If you are connected to a relay you have
the option to upload the new configurations straight away by clicking on the
Send to relay button.
CID file used in the aqs file will also be
sent to the relay when giving “Write all” command (Commands àWrite all).
DO vs DA
It is recommended that when adding entries
to the URCB and BRCB datasets that this is done on Data object level. This way
all attributes gets included, (value, quality and time).
The exception from this is when adding
entries to the GOOSE datasets. The nature of GOOSE communication is such that
same frame is repeatedly sent. The interval between frames is increasing until
reaching 2 seconds, which is the keep-alive rate. If a data value in the GOOSE
dataset changes the interval is reduced again. Timestamp information in this kind
of communication is not relevant. In GOOSE datasets we recommend that only
value and quality attributes are added.

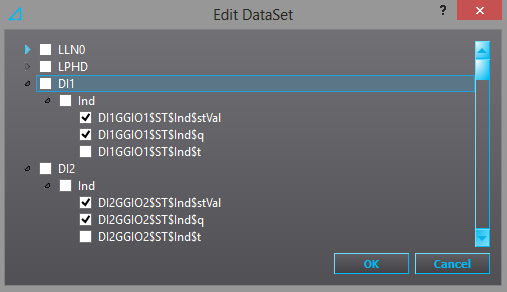

Editing GOOSE publishing datasets work in
the same way as editing the other datasets. The difference is that you may want
to change the order of the selected signals so that the DataIndex is to your
liking. In the list above you can see DI1s value (stVal) and quality of the
signal (q) and the same for DI2. The AppID of these signals is 166 which is a
hexadecimal number given in IEC61850 settings.

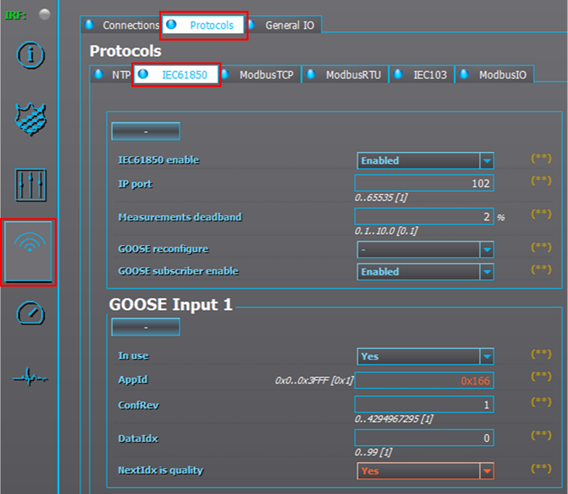

GOOSE subscriber is enabled setting a
parameter under Communication à Protocols àIEC61850 view. There are 64
independent GOOSE inputs available in the device. For each of the inputs there
are 5 settings: In use, AppId, ConfRev, DataIdx and NextIdx is quality. These
settings are used to pair an input with single data in published frames in the
system. In the picture below GOOSE Input 1 has been
configured to receive the DI1 input value that was configured in the previous
chapter’s configuration. NextIdx is
quality has been enabled which means that relay will assume the next
DataIdx (1) to be quality of the same Goose signal.
Now both the value and the quality have
been configured and can be used in configuration. Goose input 1 is the signals value and Goose input 1 quality is the quality of the same signal. Below is
an example application of both signals.
To change the name of the Goose input go to
Control à DeviceIO à Logical Signals àGOOSE
