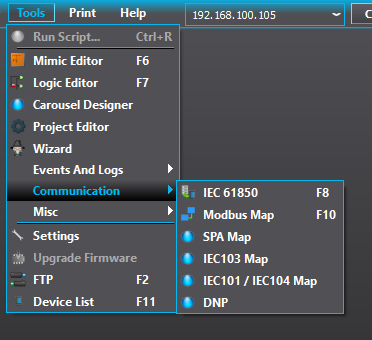

In case you are using one of the following communication protocols (DNP, IEC103, Modbus or SPA) you can find the signal mapping in the relays aqs-configuration file. The aqs file can be loaded and opened with AQtivate-setting tool. The signal maps for all of the communication protocols can be found in Tools à Communication
.
Each of the communication protocols have the option to save the signal maps into a txt files which can be then opened in table format in Excel or similar spreadsheet software.
