How to get AQ-200 IEC101 and IEC104 map and open it in excel form

How to get AQ-200 IEC101 and IEC104 map and open it in excel form

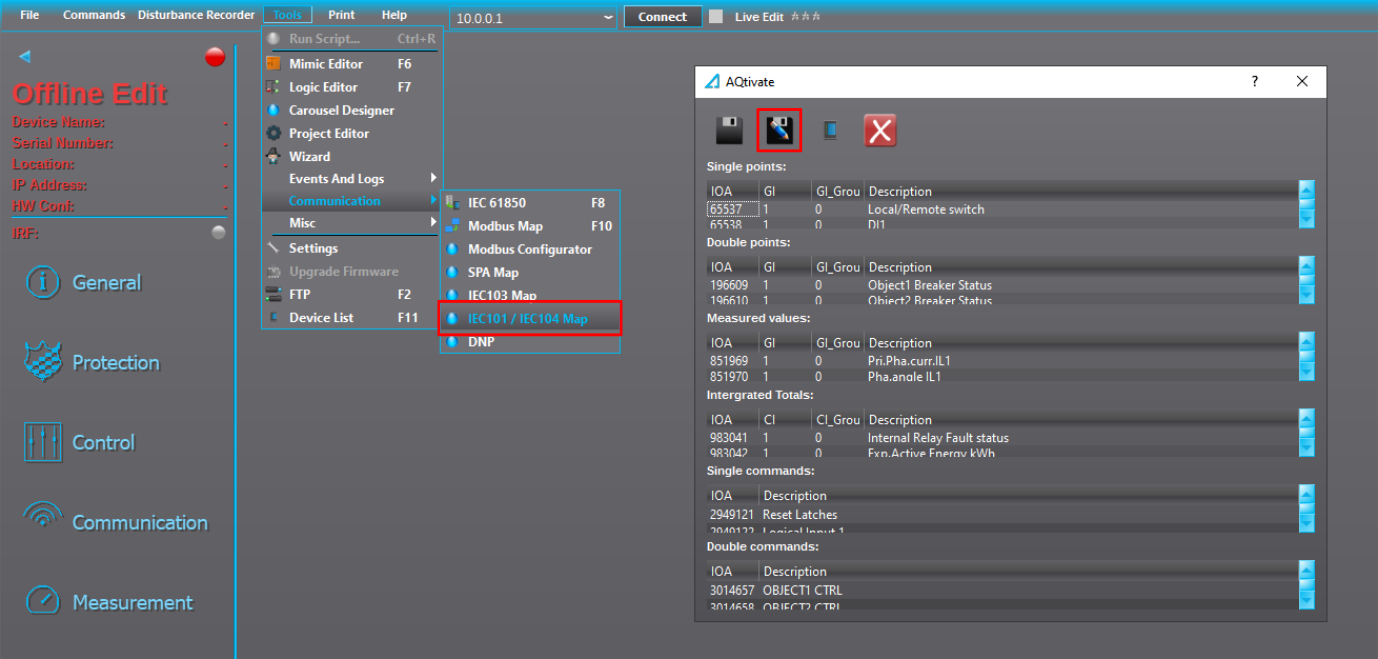

If you have an aqs file loaded from the relay it is possible to get the IEC101 and IEC104 map by opening the aqs file in AQtivate. Once opened go to Tools > Communication > IEC101/104 map. In this view you can set the GI and GI Group settings and save the map into a txt file.

Opening the IEC101 and IEC104 map in Excel

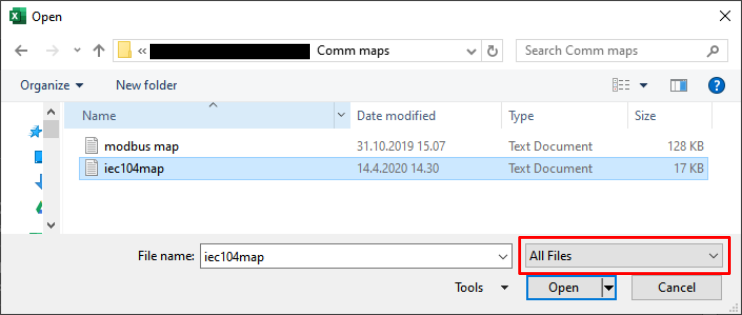

IEC101 and IEC104 map txt file can be opened in Excel in table form. When opening the file choose "All files" and then choose the txt file.

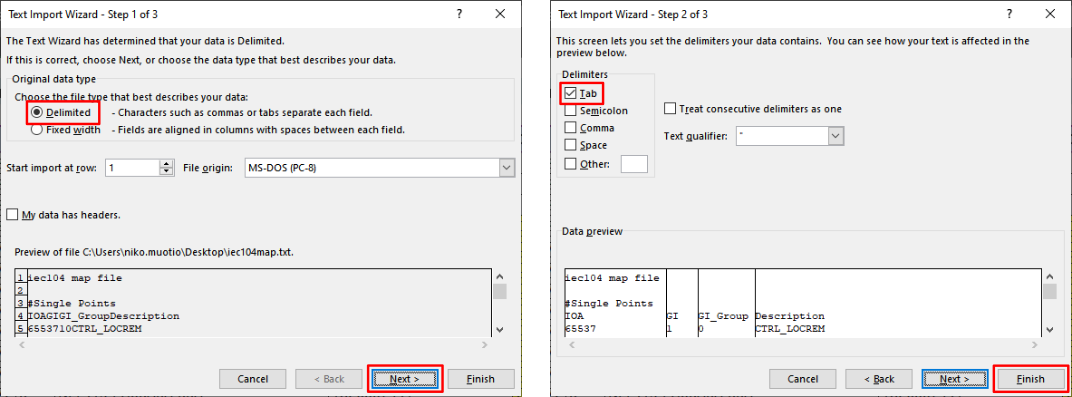

Choose delimited and move to next page. There choose "Tab" as the delimiter and then click "Finish"

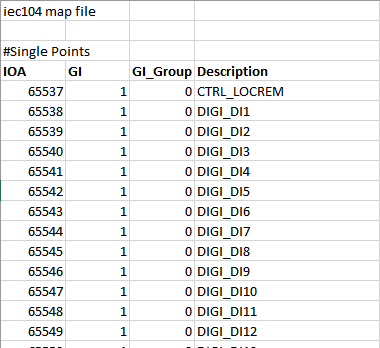

Now the txt file has been transformed into table form.
