How to get AQ-200 IEC103 map and open it in excel form

How to get AQ-200 IEC103 map and open it in excel form

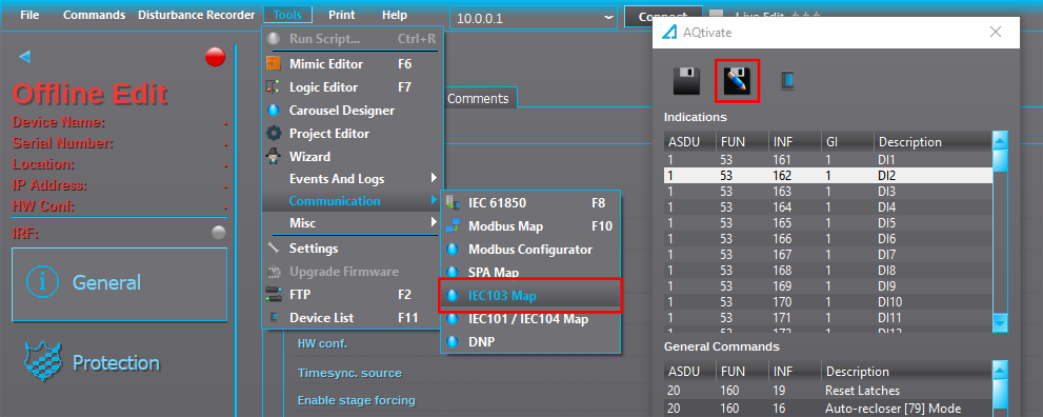

If you have an aqs file loaded from the relay it is possible to get the IEC103 map by opening the aqs file in AQtivate. Once opened go to Tools > Communication > IEC103 map. There you can save the IEC103 map into a txt file.
NOTE: In this view it is also possible to set GI of events (0 or 1).

Opening the IEC103 map in Excel

This txt file can be opened in Excel in table form. When opening the file choose "All files" and then choose the txt file.


Choose delimited and move to next page. There choose "Tab" as the delimiter and then click "Finish"


Now the txt file has been transformed into table form.
