Set all digital input thresholds with just a few clicks

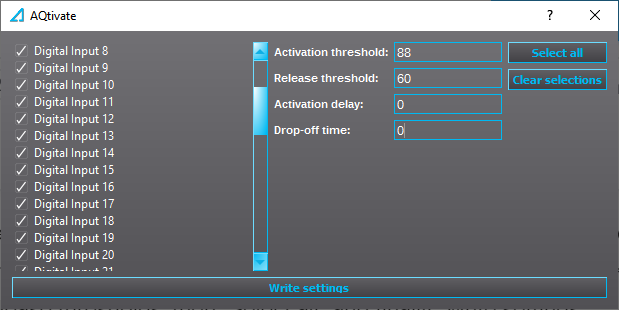

In case you have a lot of digital inputs to configure and all of them have the same voltage connected there is a tool in AQtivate setting tool which will help you set up the voltage threshold of all digital inputs at once. Simply navigate to Tools > Misc > DI configurator. Then simply set the activation and release thresholds, then "Select all" and finally "Write settings".
