Switching between setting groups manually

Switching between setting groups manually

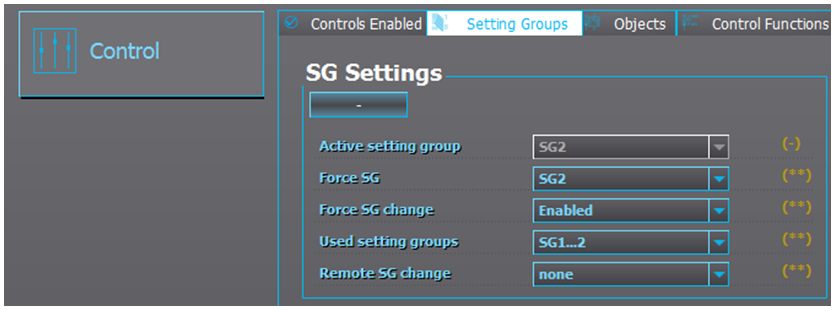

Sometimes testing the protection functions in each setting group can get very time consuming if switching between the setting groups requires a very difficult to achieve condition. In these cases it is possible to temporarily change the setting group manually by enabling Force SG change and then choose the desired setting group with Force SG. If Live Mode-is activated, active setting group is displayed in Active setting group.
