Updating Modbus map from old dialog system to new one

AQ-200 series Modbus used to use a simple tool for setting your own holding registers for signals. Nowadays AQtivate setting tool includes a better system for making modbus map configurations. This guide explains how to export the settings from old system into a new one.

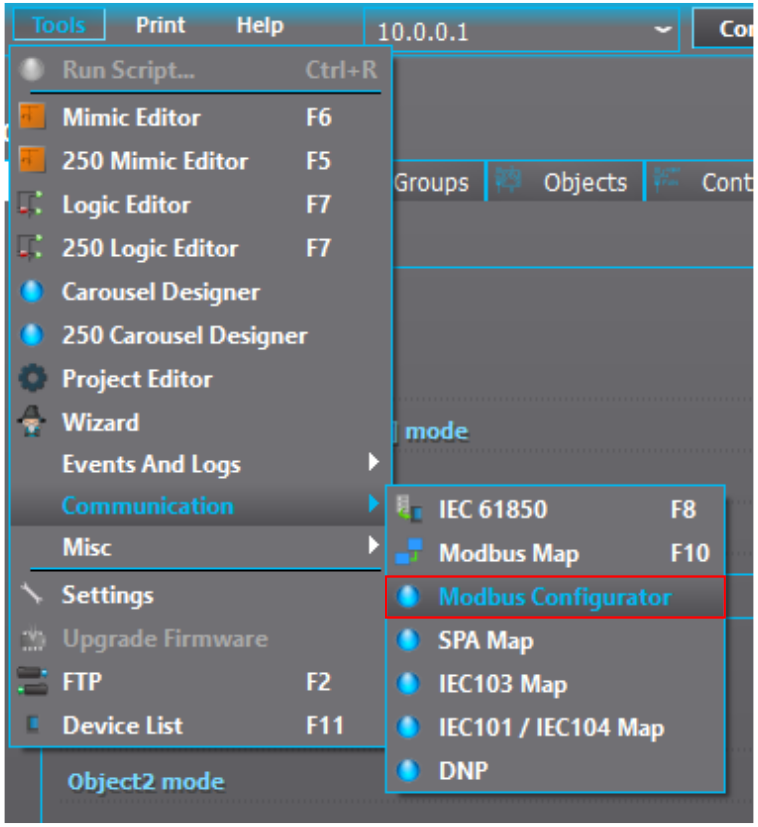

First go to Modbus Configurator.

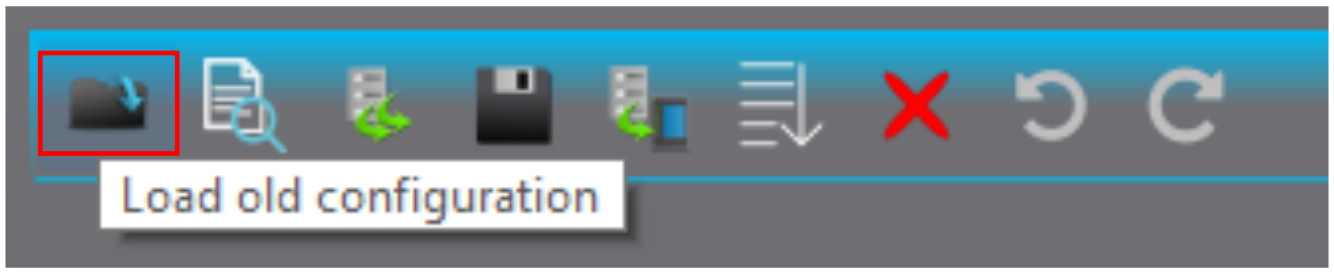

Click on "Load old configuration"

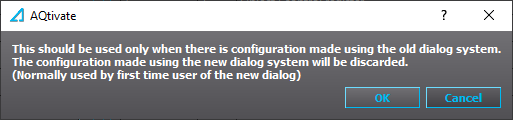

Click "OK"

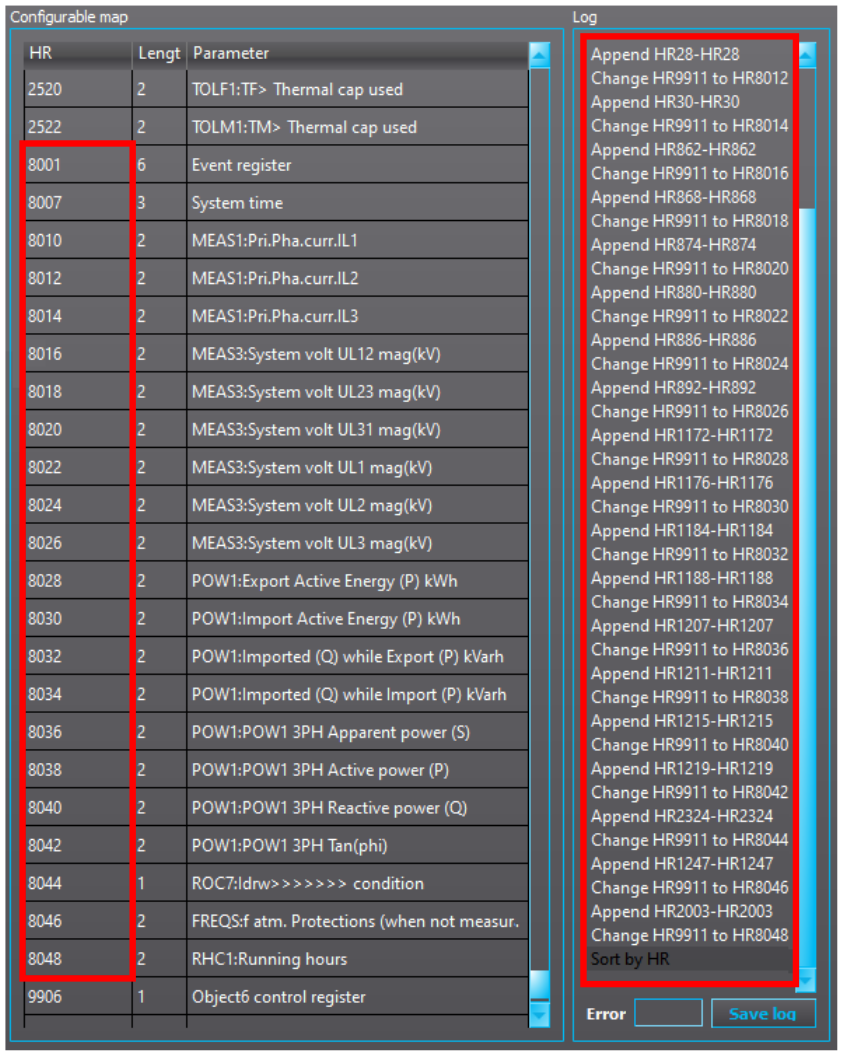

Verify that the old map is imported.

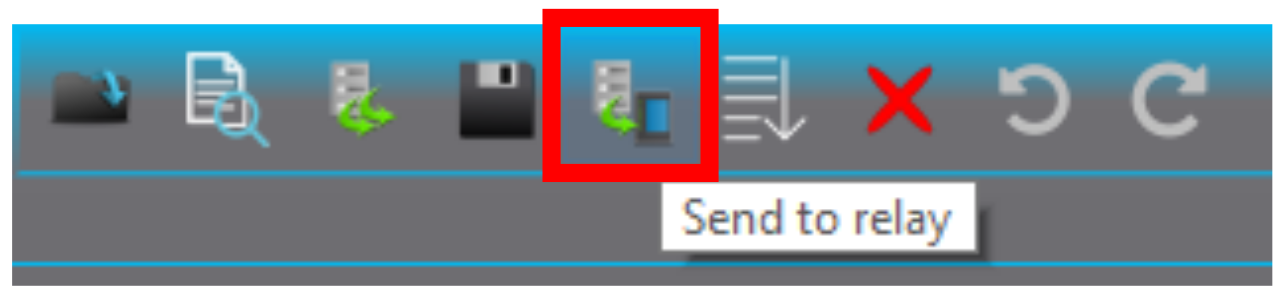

Send the configuration to the IED.
