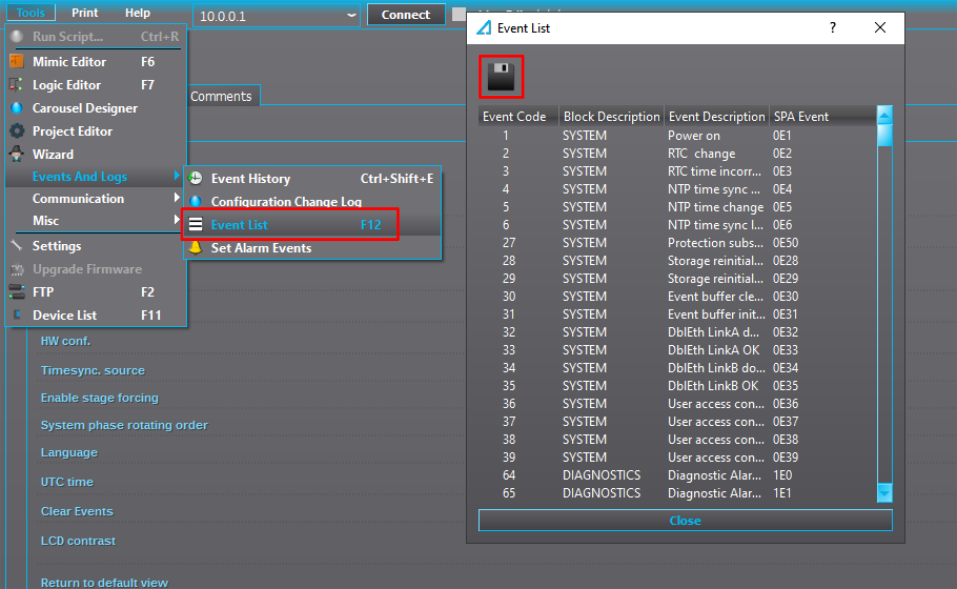

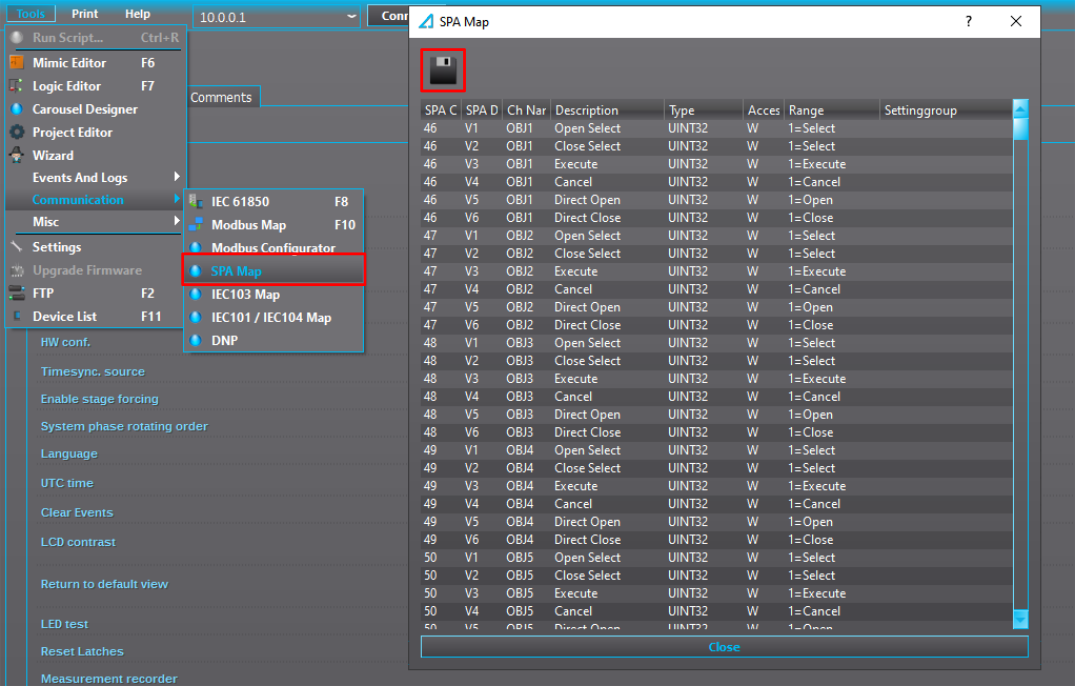

If you have an aqs file loaded from the relay it is possible to get the SPA map by opening the aqs file in AQtivate. Once opened go to Tools > Communication > SPA map. There you can save the SPA map into a txt file. SPA event list with event addresses can be found at Tools > Events and logs > Even list. This list can also be saved into a txt file.


Opening the SPA map and event list in Excel

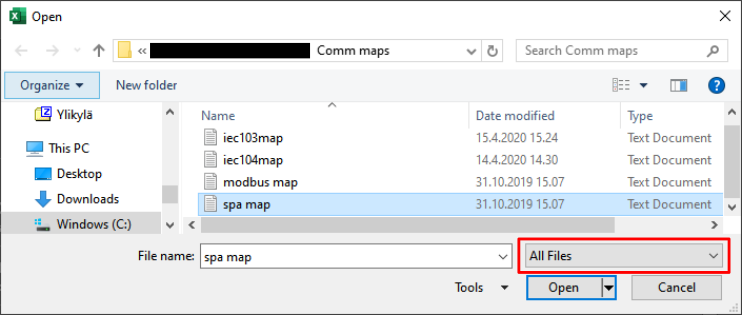

This txt file can be opened in Excel in table form. When opening the file choose "All files" and then choose the txt file.

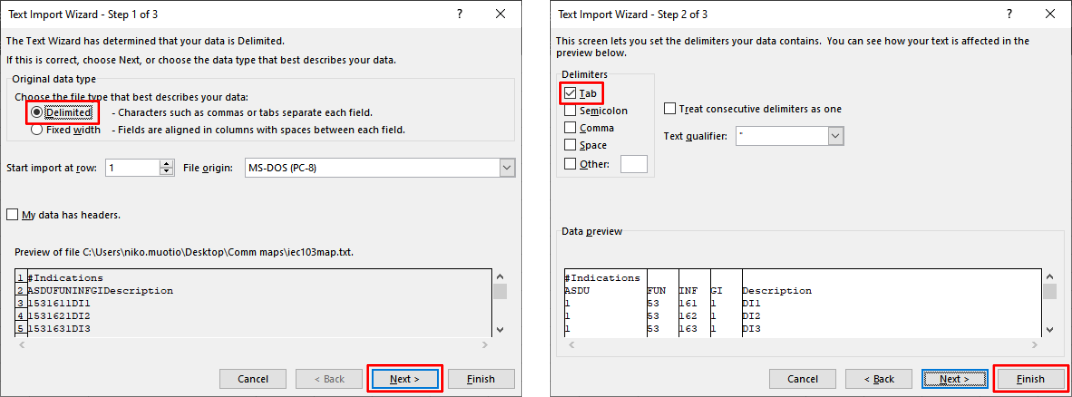

Choose delimited and move to next page. There choose "Tab" as the delimiter and then click "Finish"


Now the txt file has been transformed into table form.
